Products Analog working order indicator




Product Detail

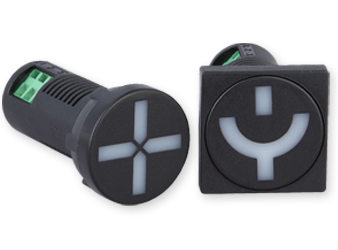

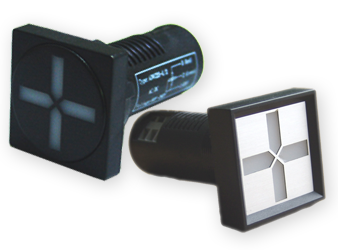

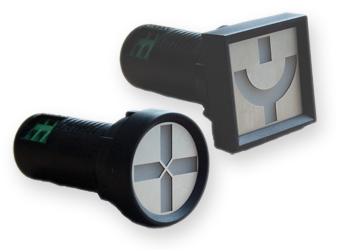

Analog working order indicator can simulate the operating position and state of the switch apparatus which includes the switches and the open circuit, and so on. It has been extensively used in all manner of mimic board of central control room and face plate of switching switch cabinet in power plants, power stations and transformer stations



Features
                   High brightness and low heat generation                    Low power consumption and high conversion efficiency
                   Long service life



Technical Parameters
            Rated voltage                 DC/AC98V-242V             Luminous intensity                 >40cd/m2
            Power frequency withstand voltage                 2000V/1min             Insulation resistance               ≥100MΩ
            Power dissipation                 ≤1W             Shell temperature rise             <5℃
            Operating temperature               -15℃~+50℃             Operating life                            >10 Year
            Cutting size              φ25             Outline dimension                  37.5×37.5×62
            Display function     Red,green colour and the graphics stand                                              for the working state
