Products Video surveillance VMS-1 system




Product Detail
The video surveillance VMS-1 system is applied to 3.6-40.5kV metal armored enclosed switchgear, utilizing visualization technology to achieve visual management of circuit breaker handcart, load switch, grounding switch, cable, busbar and other equipment inside the metal enclosed equipment. The movement status and working position of the equipment are clearly visible in real-time. Used to assist operators in accurately confirming whether the equipment is operating properly, eliminating the need for specialized personnel to arrive at remote sites for on-site confirmation, greatly improving operational efficiency, reducing operational costs, and truly achieving unmanned intelligent substations



Features
                Key structure of ultra wide angle distortion free high-definition                 probe clear capture equipment                 Integrated transmission and power supply, no need for                 independent power supply
                Satisfied for use in enclosed and dark environments                 Integrated fill and dynamic adjustment functions for full color                 image presentation
                Open interface for easy integration into users' existing platforms                 Lossless compression of data streams, reducing the occupation of                 network bandwidth,

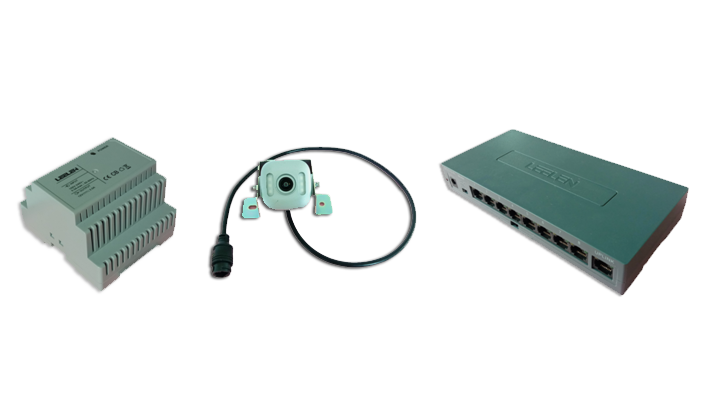

                supports remote calls                 The system consists of cameras, dedicated switches, switch power                 supplies, and upper computer client software



Technical Parameters
    Min illumination                    0.1LUX      Camera pixels                         200W
    Visible range                          110°,Vertical 95°,      Image resolution                    1920*1080
    Encoding                                 H.264,MJPEG      Mobile detection                   Trigger alarm and video recording
   Recording method                    Loop recording, alarm recording       Audio frequency                    Audio push
   Supplementary light                        LED灯补光       Network interface                   wired network
   Power supply method                     POE       Power dissipation                    1.5W
  Ambient temperature                     -10℃~+50℃       Environmental humidity                         10%~90%
